Ultrasonic Polishing Machine

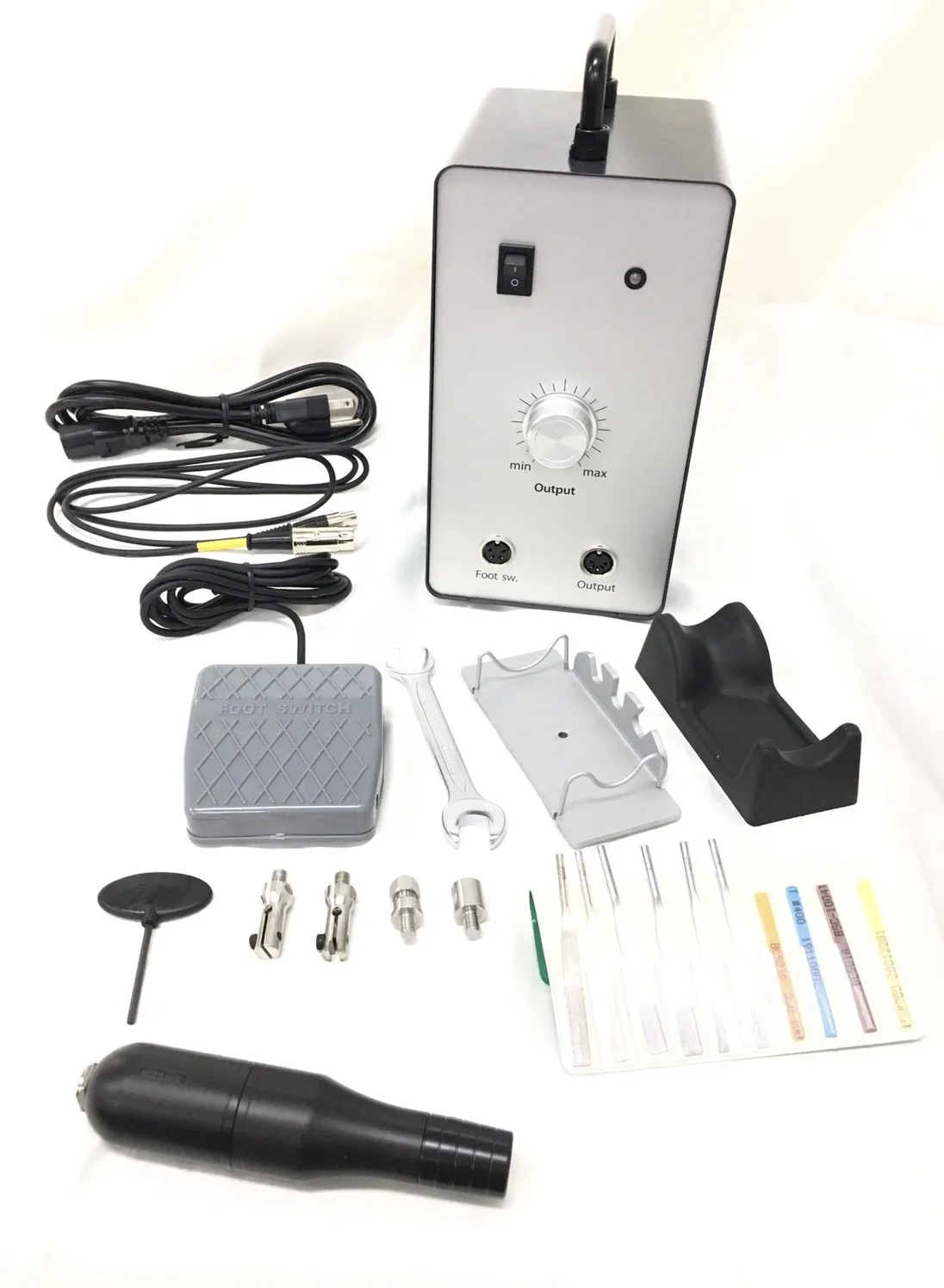

1. Full set of photos(The red box belongs to optional products)

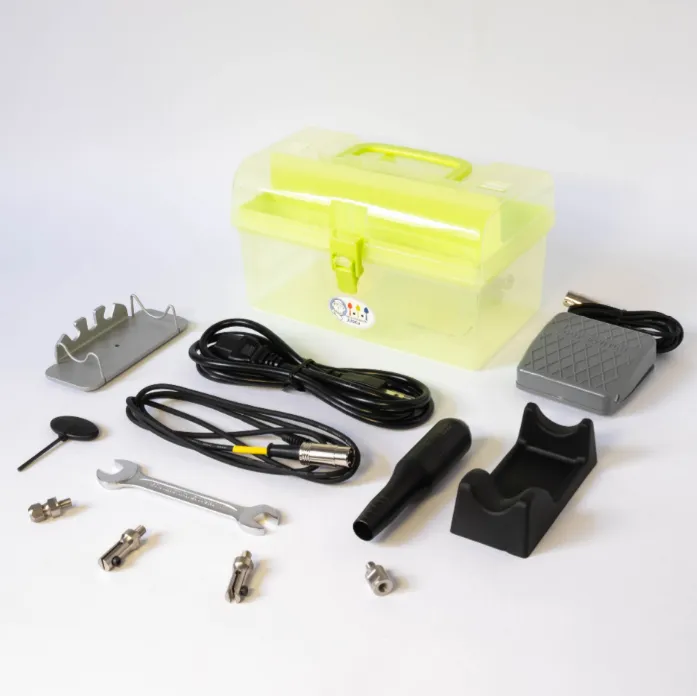

 2. Tool set (belonging to optional products)

 [A] Specifications

1．Product Type: Ultrasonic Polisher

2．Model No.:    UP-22

3．Output Power: MAX.45W,continuous variable power adjustment.

4．Frequency:   About 22KHZ (Because different tools will cause the frequency to change,

this machine has an automatic frequency tracking function, suitable for

working in the range of 18KHz~26KHz)

5．Transducer:  Electric transducer (BLT)

6．Power:      AC90V~240V 50~6OHz(Full voltage can be used)

7．Dimensions: (Main Control Unit)120(W)xl60(D)x230(H)mm , 2.6Kg

               (Hand piece)∮30(D)x132(L)mm , 0.2Kg

8．Hand piece line length: 1.5m

9．Power cord length: 1.8m

[B] Function Description

1. Power Switch:

Power indicator lights will illuminate when power is switched ON.

2. Output Adjustment:

Rotate clockwise, the output indicator will change from green to red, and the output will increase.

3. Foot Switch:

The vibrator does not work when the foot switch is inserted and needs to be stepped on.

If the foot switch is not inserted, it will continue to work and output.

4. Automatic adjustment of output compensation:

when the tool is harder on the work piece, the main control unit will automatically increase the output power to reach a heavy-duty use state.

5. Automatic Alerts:

If the ultrasonic hand piece is shorted or damaged, an audible alert will sound during the initial automatic frequency tracking cycle. If this occurs, test the system with a new ultrasonic hand piece. If the system completes the initial automatic frequency tracking cycle without alert, the first ultrasonic hand piece tested needs to be serviced or replaced.

[C] Fault repair and warranty

1. When used under normal operating conditions as described per these instructions, product warranty is guaranteed for 1 year.

2. Cutter is composed of high frequency, high voltage, precision electrical circuitry. If an internal fault occurs, do not open or attempt to repair equipment. Return equipment to vendor or factory for repair. Failure to follow these instructions will result in voiding of warranty.

3. If damage or defect is observed to blade-setting screws or hex wrench, exchange immediately. Use of damaged screws can lead to tool holder-slippage and/or irreparable damage of handpiece.

※The specifications, dimensions of our products are subject to change without further notice.
